OptiPro™ Video Display Stereo Microscope
OptiPro™ Video Display Stereo Microscope
Product Detail
Product Composition
- Main Machine

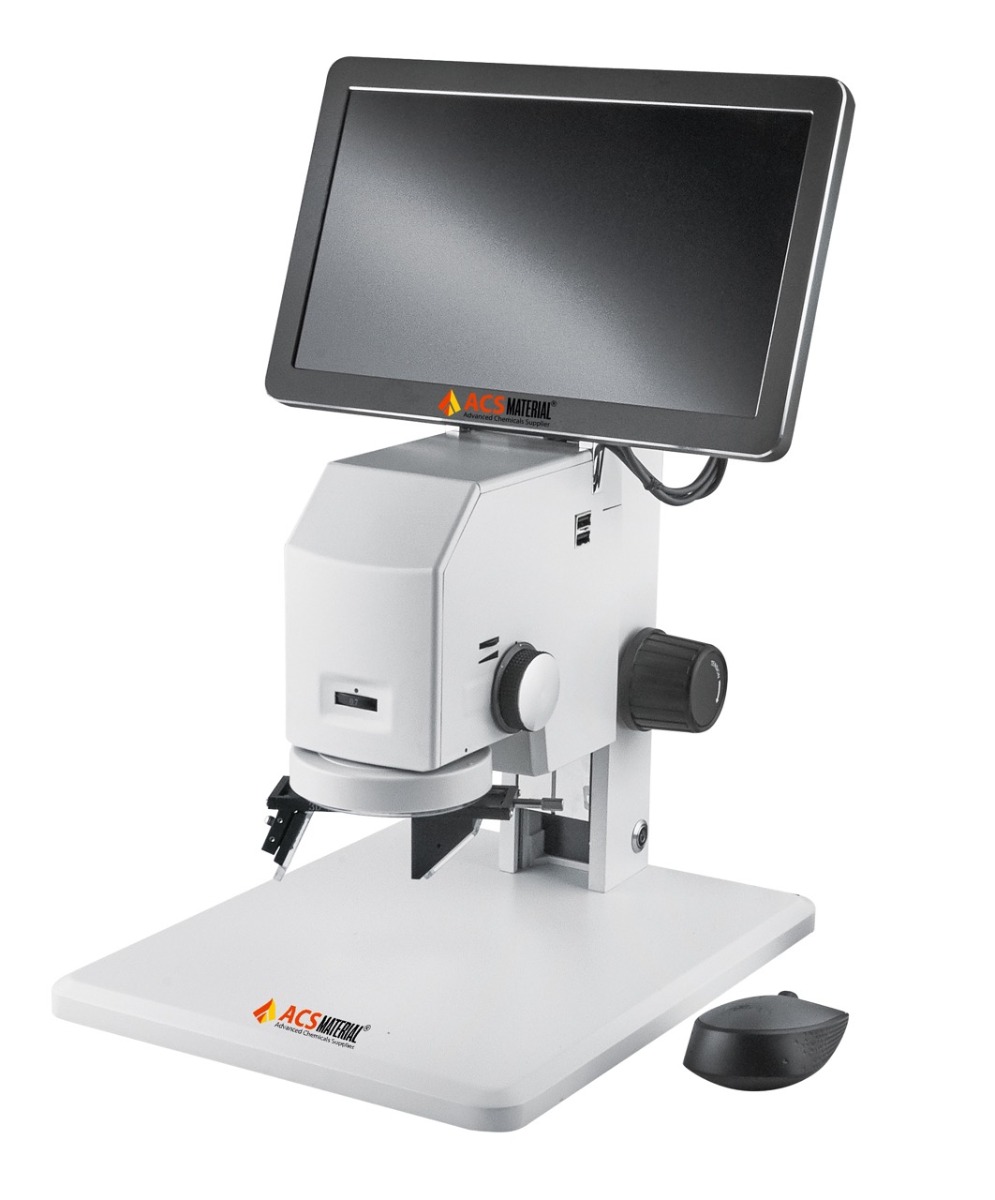

Photo of Video Display Stereo Microscope
Product Features
The equipment is designed to reduce operator stress and fatigue, with the screen positioned at a comfortable 40 cm distance and an adjustable angle. It also offers simplified wireless mouse operation for enhanced convenience. It features a simple design, with a CCD, LCD display, LED lighting, and an integrated, built-in design. The optical observation is clearer, and the high-definition display offers a resolution of up to 1080 P. The software operation allows users to measure, store, take pictures, and compare. The device supports both 2D and 3D observation, allowing for 360-degree rotation and all-around 3D observation, as well as a large field of view and depth of field.
Product Specifications
|
Product Name |
OptiPro™ Video Display Stereo Microscope |
|
Model |
EODM750P |
|
Magnification |
14X--98X (Can be extended to 6.9X--491X) |
|
Eyepiece |
0.4X (1X optional) |
|
Objective Lenses |
0.7X-5X Zoom Range (Auxiliary objective lenses: 0.5X, 0.7X, 2X optional, not included) |
|
Zoom Ratio |
01:07.1 |
|
Working Distance |
100mm |
|
Overall Dimensions |
197mm×192mm×95mm |
|
HDMI Cable With Ethernet |
HDMI Alloy Plate, Built-in chip, Synchronized output |
|
Control Interface |
11.6-inch LCD screen, 1080 P. Measure, store, take pictures, and compare |
|
Adapter |
Input 100-240V, Output 12V/2A |
|
3D Lens |
360-degree rotation omni-directional 3D observation (optional, not included) |
|
Configuration Description |
Includes 1 main machine, 1 wireless mouse, 1 base, 1 adapter. Not include: Auxiliary objective and 3D lens for option. |
