OptiPro™ TL36 Series Biological Microscope

Product Name

OptiProä TL36 Series Biological Microscope

Model

EOBTL36A

EOBTL36B

EOBTL36M

EOBTL36P

Specification Configuration

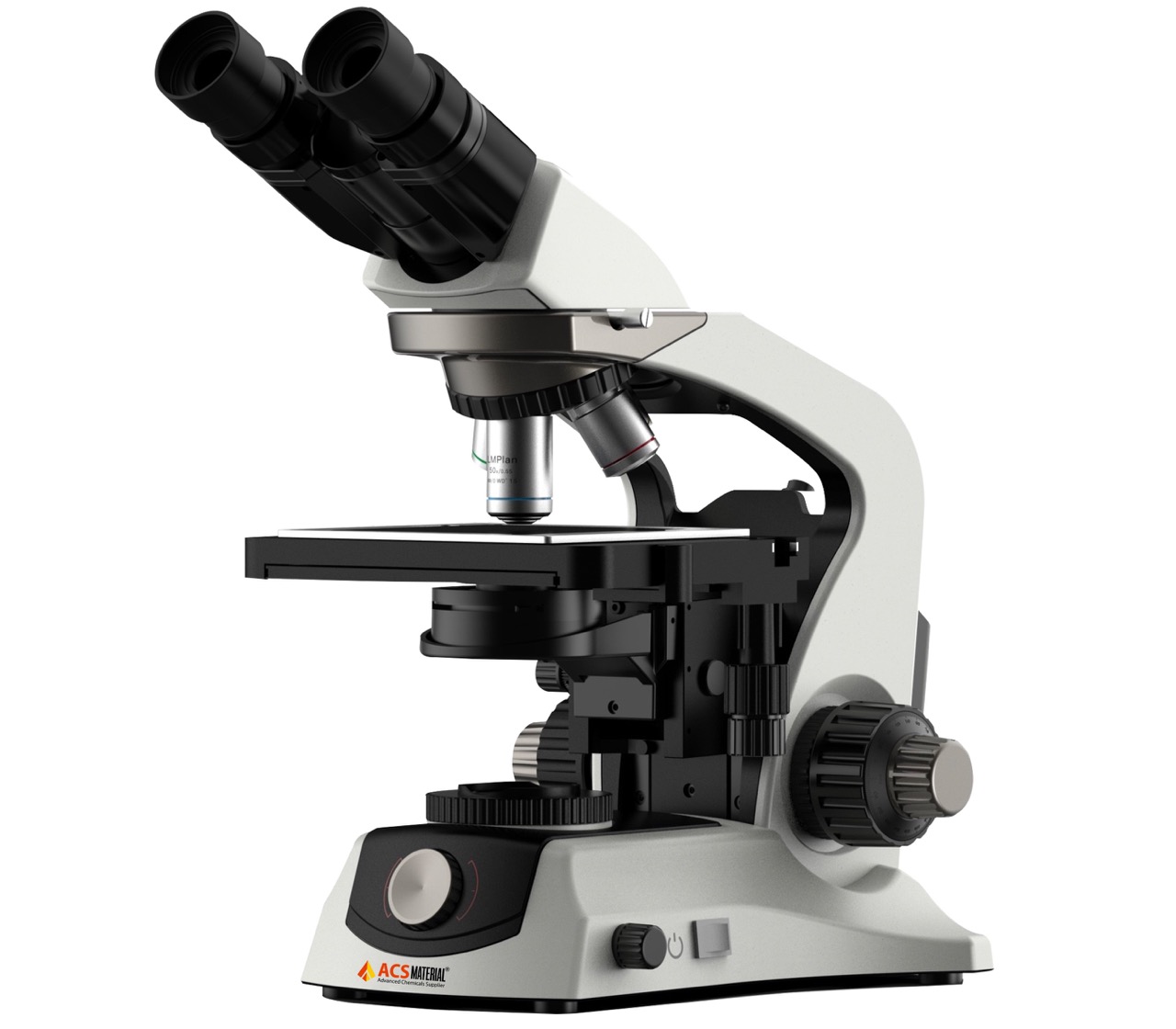

EOBTL36A

Binocular observation head, 45° tilt, 360 degrees can be rotated, pupil distance can be adjusted, adjustment range 50-75mm

EOBTL36B

Trinocular observation head, 45° tilt, 360 degrees can be rotated, pupil distance can be adjusted, adjustment range 50-75mm.

EOBTL36M

Trinocular viewing head with 6.3-megapixel imaging system CMOS camera

EOBTL36P

Trinocular viewing head, equipped with 10.1-inch integrated flat panel display

Optical System

Equipped with an infinite plan optical system, anti-mold design, and wide field eyepieces.

Observation Head Device

·      Can rotate 360 degrees with a maximum image center shift of ≤0.06mm during rotation

·      Features a 30ºtilt; hinged binocular observation (magnification difference between left and right systems ≤2.0%; eyepiece position difference at zero diopter ≤0.1mm)

·      Third-party connection port.

·      Interpupillary distance adjustable range: 50-75mm.

·      Fixed observation tube head with hex screws or portable screws.

Eyepiece Configuration

·        Equipped with high-eye-point eyepieces WF10X/22mm

·        Eyepiece magnification accuracy within ±2%

·        Eyepiece tube with slot design to prevent falling out

·        Adjustable diopters for easier observation

Objectives

·        Broadband-coated EF-N195 pure copper infinite plan achromatic objectives

·        Objective magnification accuracy within ±5%

·        Magnifications: 4X, 10X, 40X (spring), 100X (spring, oil)

·        Parfocality error: ≤0.06mm (10-40X), ≤0.03mm (40-100X)

Stage

·        XY mechanical stage

·        Repeatability: ≤0.005 under 5N lateral force

·        Corrosion- and wear-resistant

·        Dimensions: 190X140mm

·        Travel range: 60×90mm

·        Minimum reading: 0.1mm

Focusing Mechanism

·        Coaxial adjustment

·        Coarse and fine knobs with overload protection

·        Micro-focus on both sides

·        Focusing range: 25mm

·        Minimum increment: 0.002mm

Illumination

·        3W LED cold light source

·        Rechargeable via Type C

·        Adjustable brightness

·        Lifespan: >100,000 hours

(Note: The collector lens seat should not be easily removed to prevent misalignment of the optical path.)

Converter

·        Metal four-hole inclined nosepiece

·        Positioning stability: ≤0.006mm

(Note: No need to raise or lower the stage when changing slides, preventing potential damage to the objectives during use.)

Back Plate

Portable handle for easy relocation.

Additional Features

Pre-configured for phase contrast, dark field, and simple polarized light observation.

Camera Interface Configuration

Dedicated C-mount and digital camera-specific interface.

Eyepiece

Wide-angle eyepiece WF10X, field of view 22mm, optional WF16X, WF25X

Nosepiece

Quadruple Revolving Nosepiece

Objective

Flat field achromatic objective at infinite distance, 4X, 10X, 40X, 100X(oil)

Condenser

ABBE N.A.1.25 Condenser with Iris Diaphragm & Blue Filter

Stage

Double Layer Mechanical Stage, Size1190X140mm, Moving Range :60mm×90mm

Focusing

Coarse and Fine Focusing， Minimum focusing range: 0.02 mm

Light Source

3W LED, with Rechargeable Battery, Type C USB cable

Attachments

Dust bag, Type C power cord

Select Accessories

Dark field condenser
