MicroSpin™ Microfluidic Spinning Machine

As low as $0.00 $0.00
In stock
SKU# EMSMS

MicroSpinTM Microfluidic Spinning Machine



Product Detail

Product Overview

1) Main Unit

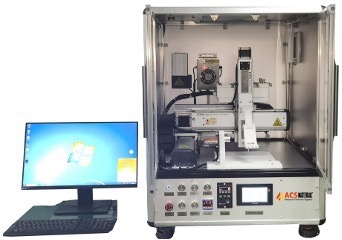

Photo of MicroSpinTM Microfluidic Spinning Machine

Product Features

Compared with the MicroSpinTM Microfluidic Spinning Machine, this instrument does not need high voltage electric field, the polymer used does not need to conductive, conductive and non-conductive polymers are suitable for this device, so it is more broad-spectrum; at the same time, it has high spinnability, and it can achieve different solvents and different molecular weights of polymers spinning; it can be used for one-dimensional fibers and three-dimensional beads, and it can also be used to prepare inorganic-organic blended spinning; and it has high controllability: the fluid rate can be controlled, and the diameter of the fibers can be controlled. Highly controllable: fluid rate and fiber diameter. The instrument is safe and easy to operate.

Key Features:

  • Abundant spinnable material
  • Fiber arrays can be realized to be arranged in an orderly manner as required
  • Precision propulsion device to ensure uniformity of filament formation
  • Multi-axis system with precise control
  • Controllable fiber diameter, controllable array structure
  • A variety of receiving devices, flexible and diversified


Product Specifications

Product Name

MicroSpinTM Microfluidic Spinning Machine

SKU#

EMSMS001

Feed Rate Range

20.1 μl/h - 681.73 mL/min

Rotation Speed

0 - 1440 rad/min

Translation Speed

0 - 1000 mm/min

Temperature Curing System Power

200W

Temperature Control Range

RT~100℃

Temperature Control Accuracy

±1℃

Humidity Accuracy

±3%RH

Power Supply

220V±10%, 50Hz

Rated Power

600W

Overall Dimensions

950 x 550 x 600mm

Weight

55kg

Configuration Description

Includes 1x main unit, 1x electronic controlled mobile platforms, 1x spinning receiver, 1x microfluidic platform, 1x microfluidic chip, and 1 set of microfluidic needles.

Applications

  • Biomedical Materials: Tissue engineering scaffolds, drug delivery, artificial blood vessels, cell culture, blood filtration membranes, drug delivery
  • Filtration Materials: Masks, air filters, oil-water separation, extraction, filtration membranes, seawater desalination, selective adsorption
  • New Energy: Energy storage materials, fuel cells, lithium-ion battery membranes, solar cells, sensor materials, flexible wearables
  • Defense Industry: Thermal insulation materials, electromagnetic shielding, stealth wave absorption
  • Catalysis: Catalyst support, photocatalysis, chemical catalysis, exhaust and wastewater, catalysis
  • Others: Cosmetics, food processing, waterproofing and anti-corrosion, heat and thermal insulation
