MicroSpin™ Microfluidic Nano Spray Spinning Machine
MicroSpin ™ Microfluidic Nano Spray Spinning Machine
Product Detail
Product Overview
1) Main Unit

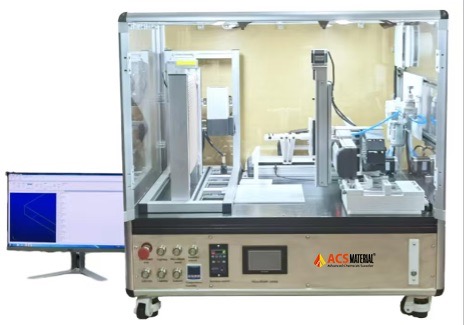

Photo of MicroSpin™ Microfluidic Nano Spray Spinning Machine
Product Features
The MicroSpin ™ Microfluidic Nano Spray Spinning Machine is a new type of equipment for large-scale preparation of nano-fiber mats. This device uses microfluidic technology (such as microfluidic pumps and microfluidic chips) to form microchannels, and by controlling the air pressure of the air pump and adjusting the distance between the receiving device and the nozzle, it produces nano-fibers with controllable dimensions. It combines a shaft-type receiving device to achieve large-scale production of nano-fiber mats. Additionally, by controlling multiple sets of microchannels to form micro-reactors, it can produce nano-material fiber mats such as quantum dots, photonic crystals, and even bio-inspired abdominal membranes.
Key Features
- High-pressure gas injection enables the preparation of nanoscale fibers;
- Simultaneous operation of X, Y, and Z axes ensures fiber uniformity;
- Unique spool receiving device for large-scale production;
- Precision liquid supply system ensures continuous processing;
- Environmental temperature and humidity control system;
- Safety protection system, corrosion-resistant and high-pressure resistant.
Product Specifications
|
Product Name |
MicroSpin ™ Microfluidic Nano Spray Spinning Machine |
|
|
SKU# |
EMSNS001 |
|
|
Jenners Microfluidic Pump |
Selectable syringe size range (mL) |
0.5 - 200 |
|
Injection speed range |
0.1μl/h - 681.73ml/min |
|
|
High-pressure gas generation device |
Gas source generation device, ultra-quiet, ultra-clean, automated design, meets experimental requirements |
|
|
Needle System |
Specialized gas spray needles, specific specifications can be provided based on customer requirements |
|
|
Chip |
Diverse designs of internal channel shapes and configurations |
|
|
Slider Sroke |
X 200mm, Y 200mm, Z 100mm |
|
|
Mechanical System |
Three-Axis System: X, Y, Z axes can operate simultaneously |
|
|
Control System |
Industrial-Grade Motion Control System: Ensures long-term stable operation, computer-controlled for various operation modes |
|
|
Receiving Device |
Microfluidic spinning receiver, gas spray continuous winding receiving device. Capable of producing flat films with dimensions no smaller than 300mm*800mm. Multiple receiving methods are available for selection. |
|
|
Moving Speed |
0~500 mm/s Position repeatability ±0.01mm |
|
|
Thermal Curing System |
Operation Power: 200W |
|
|
Polymer Temperature Control System |
Temperature control range: RT~ 100 ℃ Accuracy: ± 1 ℃ |
|
|
Chamber Temp and Humidity Control System |
Humidity Accuracy : ±3% RH Temperature Accuracy: ±0.5℃ |
|
|
Power Supply |
AC: 220V±10%, 50Hz |
|
|
Operating Environment |
Room temperature and pressure under static conditions |
|
|
Rated Power |
1000W |
|
|
Configuration Description |
Includes 1 main machine, 1 microfluidic pump, 1 microfluidic chip, 1 microfluidic needle, 1 electronic control platform, 1 collection device and 1 gas supply system. |
|
Application
- Biomedical Materials: Tissue Engineering Scaffolds, drug delivery, artificial blood vessels, cell culture, blood filtration membranes, drug release
- Filtration Materials: Masks, air filters, oil-water separation, extraction, filtration membranes, seawater desalination, selective adsorption
- New Energy: Energy storage materials, fuel cells, lithium-ion battery separators, solar cells, sensor materials, flexible wearables
- Defense and Military: Thermal insulation materials, electromagnetic shielding, stealth and wave absorption
- Catalysis: Catalyst carriers, photocatalysis, chemical catalysis, exhaust gas and wastewater Catalysis
- Others: Cosmetics, food processing, waterproofing and corrosion resistance, thermal insulation
