MicroSpin™ Microfluidic Electrostatic 3D Printing Spinning Machine
MicroSpinTM Microfluidic Electrostatic 3D Printing Spinning Machine
Product Detail
Product Overview
1) Main Unit

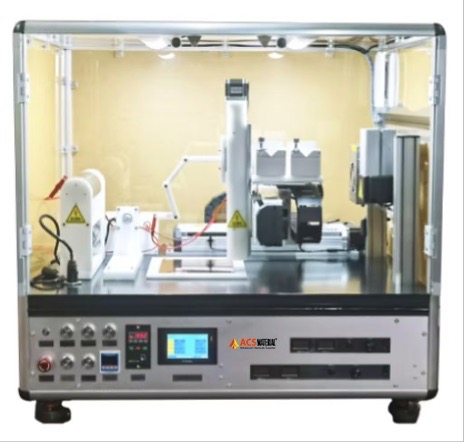

Photo of MicroSpinTM Microfluidic Electrostatic 3D Printing Spinning Machine
Product Features
The MicroSpinTM Microfluidic Electrostatic 3D Printing Spinning Machine integrates the principles of electrospinning, microfluidic spinning, and 3D printing. With diverse microfluidic chips at its core, it achieves precise digital control through microfluidics. This enables the preparation of ordered fibers with multi-level structures via microfluidic processes, while also supporting the production of ultrafine fibers through conventional electrospinning mechanisms. Additionally, its foldable mechanical arm facilitates 3D printing, allowing the machine to serve multiple functions and meet the needs of various research fields.
Key Features
- 3D Printing Platform: Incorporating a three-axis maneuvering system for 3 dimentional printing environment
- 3-Axis System: Precise Controls for simultaneous X, Y, and Z axis operation
- Ventilation: Remove volatile solvents to ensure the safety of operators
- Program Control: Compatible drawing software enables G-code control
- User Interface: All operations integrated in one interface for simple operation
- Microcomputer Control: enables diverse functions of the equipment and extends its service life.
Product Specifications
|
Product Name |
MicroSpinTM Microfluidic Electrostatic 3D Printing Spinning Machine |
|
|
SKU# |
EMSE3P01 |
|
|
Microfluidic Pump |
Selectable syringe size range (mL) |
0.5 - 200 |
|
Injection speed range |
0.1μl/h - 681.73ml/min |
|
|
High-Voltage Spinning Power Supply |
0 ~ 50kV, digital display, over-current protection, over-voltage protection |
|
|
Chip |
Diverse designs of internal channel shapes and configurations |
|
|
Slider Sroke |
X 200mm, Y 200mm, Z 100mm |
|
|
Mechanical System |
Simultaneous three-axis operation |
|
|
Control system |
Motion control system, stable long-term operation, computer-controlled, enabling multiple operating modes |
|
|
Receiving Device |
Electrostatic-specific receiver, microfluidic spinning receiver, plate-type platform Speed range: 200–1450 rpm, precisely adjustable across a wide range from low to high speeds, with a speed error of ±1 rpm |
|
|
Moving Speed |
0~500 mm/s Position repeatability ±0.01mm |
|
|
Thermal Curing System |
Operation Power: 200W |
|
|
Polymer Temperature Control System |
Temperature control range: RT~ 100 ℃ Accuracy: ± 1 ℃ |
|
|
Chamber Temp and Humidity Control System |
Humidity Accuracy : ±3% RH Temperature Accuracy: ±0.5℃ |
|
|
Safety System |
Uses insulating materials, ensuring cleanliness and safety. Equipped with door switch sensors, emergency stop buttons, and other safety protections. |
|
|
Power Supply |
AC: 220V±10%, 50Hz |
|
|
Operating Environment |
Under normal temperature and pressure, in a static environment |
|
|
Rated Power |
1000W |
|
|
Configuration Description |
Includes 1x main unit, 1x microfluidic pumps, 1x microfluidic chips, 1x 3D printing platforms, 1x high voltage power supplies, 1 set microfluidic needles. |
|
Applications
- Pharmaceuticals: Drug carriers, hemostatic materials, high performance masks
- Tissue Engineering: Artificial blood vessels, artificial cartilage tissue, artificial Skin
- Filtration Materials: Air filters, water purification filters, filter cartridges
- Cosmetics: Face masks, skin cleansers
- Flexible Wearable: Liquid cystal display, light emitting OLED, flexible screen
- Nanomaterials: Quantum dot fibers, photonic crystal fibers, mono-dispersed microspheres
