InSitu Pro™ External Adjustment Probe Stage B- AECHO600SB
InSitu Pro™ External Adjustment Probe Stage B- AECHO600SB
Product Detail
Product Composition
- Main Unit

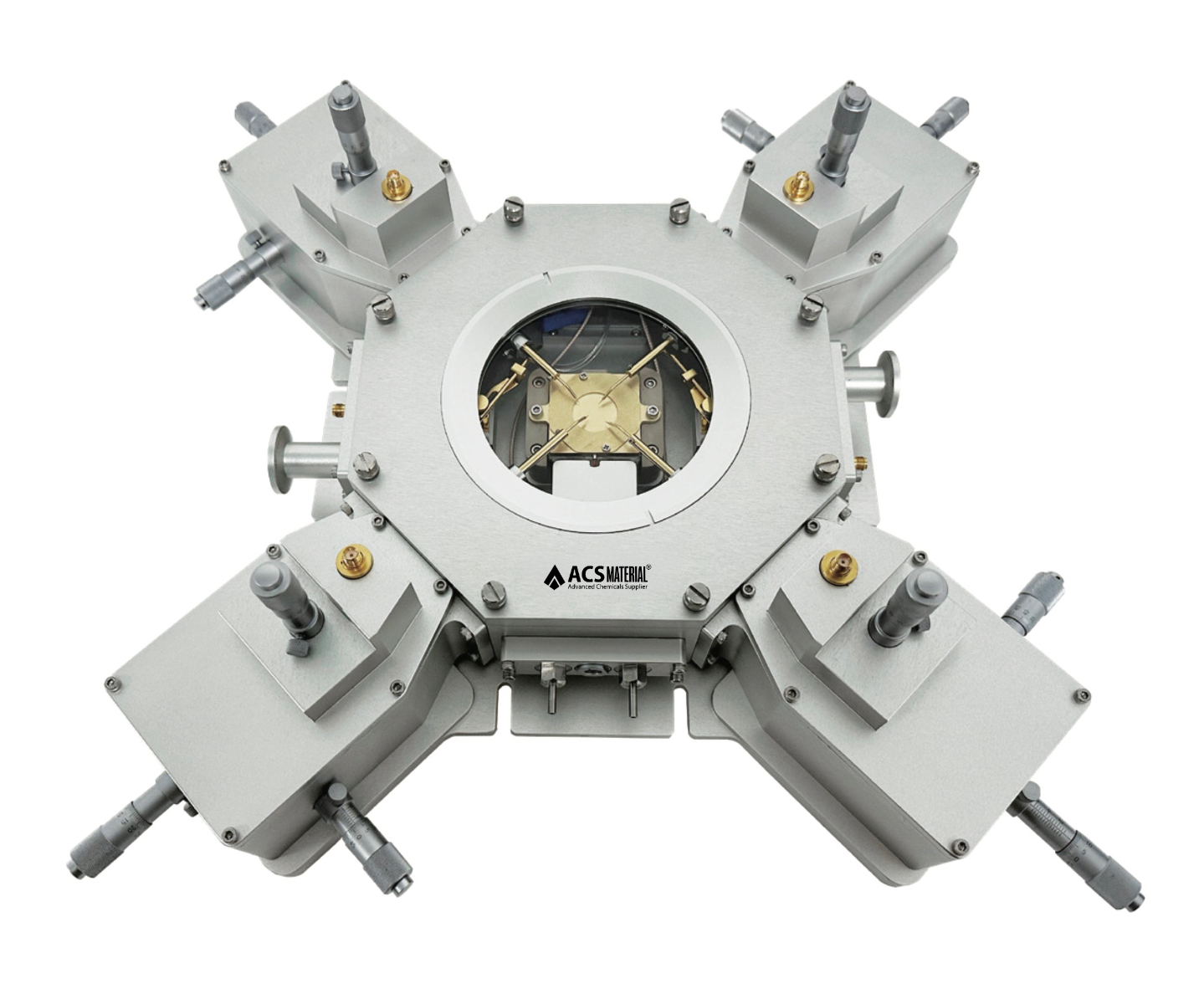

Photo of InSitu ProTM AECHO600SB
Product Features
The machine is a product designed for studying the variable temperature electrical properties of samples. It can characterize the changes in the electrical properties of samples with temperature variations. The product utilizes a semiconductor-based heating and cooling method (thermoelectric cooling), enabling precise temperature control within the range of -25 to 120°C. It can be integrated with other electrical instruments (such as bridges, source meters, and multimeters) for variable-temperature in-situ testing.
The product needs to be used with a temperature controller. The accompanying temperature control software on the host computer facilitates temperature setting and data acquisition. The provided LabVIEW Vis/C# SDK allows customers to perform customized programming.
Product Specifications
|
InSitu Pro™ External Adjustment Probe Stage B- AECHO600SB |
|||||
|
SKU# |
EIPOCHB1 |
||||
|
Temperature Control Module |
Cooling And Heating Method |
Semiconductor |
Structural Properties |
Sample Stage Size |
40x40mm * |
|
Temperature Control Range |
-25 ~ 120 °C * |
Sample Stage Material |
Brass * |
||
|
Temperature Stability |
±0.1℃ |
Overall Dimensions |
375x375x66mm * |
||
|
Temperature Resolution |
0.1℃ |
Sample Chamber Height |
11mm * |
||
|
Heating and Cooling Rate |
0~30℃ /min (Programmable point control or segmented control), up to 150°C/min |
Chamber |
Vacuum* |
||
|
XYZ Displacement Range |
±6.5mm |
||||
|
Temperature Control Method |
PID |
Probe Displacement Accuracy |
10μm |
||
|
Temperature Sensor |
PT100 |
Electrical Properties |
Probe |
Adjustable probes x4, Fixed probes x2 * |
|
|
Optical Properties |
Optical Path |
Reflective optical path * (optional transmissive optical path) |
Probe Connector Type |
SMA x 8 * |
|
|
Window Material |
Quartz glass (manually removable and replaceable) * |
Sample Table Potential |
Default electrical suspension *, optional electrical grounding |
||
|
Window Dimensions |
Ø100mm * |
Basic Configuration |
1 main machine, 1 temperature controller, 1 water circulation system, and 1 temperature control software, and 1 bottom XY axis displacement stage (compatible with optical platform). |
||
|
Objective Working Distance |
14mm * |
||||
|
Light Transmission Aperture |
Default no light transmission * (optional with light transmission aperture) |
Optional |
Computer main unit / installation bracket / vacuum system / custom temperature control software. |
||
|
Window Defrosting |
Airflow defrosting at sub-zero temperatures |
||||
|
Note |
All parameters above are default. Items marked with * are customizable. |
||||
