    Dealuminated ultrastable Y zeolites have increasingly attracted attention as good adsorbents and stable acid catalysts. These materials exhibit high thermal and hydrothermal stability, as well as higher catalytic activity than that of aluminum-rich synthesized Y zeolites. The ultrastable Y zeolite (USY) in fluid cracking catalysis is commonly stabilized by ion-exchange with rare earth (RE) cations.  These rare earth ultrastable Y zeolites, also known as REUSY, demonstrate how rare earth exchange can provide much needed hydrothermal stability.

    Introduction

    Y zeolite (IZA structure, FAU type) is characterized by large, essentially spherical, internal cavities (supercages) linked tetrahedrally through pore openings of about 0.8 nm and defined by rings of twelve oxygen atoms.

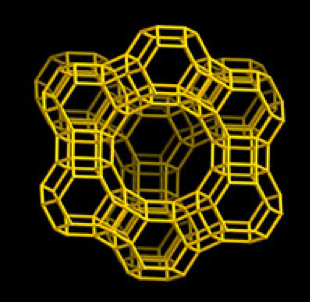

    Figure 1. Structure of FAU type zeolite

    The commercial synthesis of Y zeolite was claimed by Breck1 in 1964 after the first industrial manufacturing of A and X type zeolites by Milton.2,3 Zeolite NaY appeared to be topologically analogous with the type X aluminosilicate framework and the cubic unit cell of these alumosilicates was known to contain 192 (Si,Al) O4 tetrahedrons. Breck suggested that the change of X to Y modification occurs at a silicon to aluminum ratio of 1.5.4 Thus, Zeolites with Si/Al values lower and higher than this critical point characterize X and Y composition, respectively. Due to the instability of Al-rich samples in acids or water at elevated temperatures,5 Y samples above Si/Al ratio of 2.2 may be dealuminated in steam without having the framework collapse.6



    Synthesis

    (1) Synthesis of NaY Zeolite

    The synthesis of aluminum-rich zeolites such as A, X, and Y types relies on the crystallization process of zeolites from their primary aluminosilicate gels.  Properties of dealuminated Y samples such as crystallinity, silicon to aluminum ratio and secondary pore volume depend directly on the state of the parent NaY crystals and even on the starting gel as well. Typical compositions of synthesis precursors of aluminosilicate zeolites are as follows:

    2.0 SiO2 : 1 Al2O3 : 3.4 Na2O : 170 H2O NaA

    4.5 SiO2 : 1 Al2O3 : 6.3 Na2O : 280 H2O NaX

    9.0 SiO2 : 1 Al2O3 : 3.0 Na2O : 120 H2O NaY

    Final Si/Al ratios of 1, 1-1.2, and 2.2-3.0 are obtained respectively7.

    Since zeolite Y can be directly synthesized with Si/Al ratios above 3, catalytically relevant materials with high Si/Al ratios must be prepared by post-synthetic removal of the framework aluminum. Furthermore, heating NH4Y in dry vs. wet air brings about different dealumination effects and structural characteristics 8.

    (2) Synthesis of Ultrastable Y Zeolite

    Ultrastable Y (USY) zeolite is an effective catalyst used for catalytic cracking in petroleum refining. This catalyst is prepared from ammonium Y zeolite by steaming at high temperatures above 773 K. From this process, aluminum cations are dislodged from the framework of the Y zeolite. Through this process, as the actual catalytic cracking occurs, the structure of the Y zeolite is simultaneously stabilized.9

    (3) Synthesis of REUSY Zeolite

    Among commercial fluid catalytic cracking (FCC) catalysts, REUSY, is one of the most commonly used. It is exchanged with mixed rare earth elements consisting predominantly of lanthanum and cerium. The synthesis of REUSY starts with ultrastable Y zeolite prepared as described in the previous section. Different rare earth-exchanged zeolites are then prepared by either (a) acid treatment of the ultrastable Y zeolite at a set pH, followed by rare earth exchange, or (b) exchanging the zeolite with a rare earth chloride solution of a certain acidity. Various types of Y-type series zeolites are available in powder and pellet forms on our ACS Material online store. Figure 2 below shows an SEM image of our Y-RE2 type REUSY.

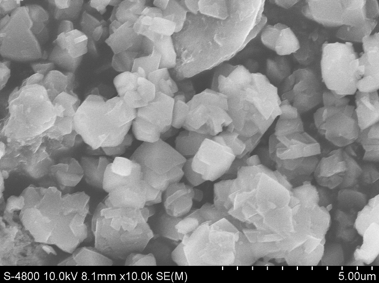

    Figure 2. SEMimage of ACS Material Y-RE2 (REUSY)



    Applications

    (1) Adsorber/ Catalyst Composites

    Active ingredients in adsorber/catalyst composites on the basis of high-silica dealuminated Y zeolites are exclusively localized on the crystal surface while the bulk remains free for adsorption. Thus, high conversion of acetone is possible on H-dealuminated Y composites with Si/Al = 150, n-butane on a Ni-dealuminated or Pt-dealuminated Y zeolites.10 The most popular application of such composites is the purification of waste water in which pollutants such as halogenated hydrocarbons must be removed up to a few nanograms. In this process, pollutants are first separated by adsorption from a liquid phase, and then decomposed by chemical reaction by oxidation with hydrogen peroxide as an example.

    Wolfgang Lutz et al. tested the decomposition of p-chloro-phenol in water on Pt-dealuminated Y samples as compared to Fenton’s reagent (FeSO4).11 The zeolite was loaded by 5mg, 12mg, 23mg, and 47mg of Pt per g composite. The best effect was obtained with 5mg/g because of an optimized activation of the admixed hydrogen peroxide.

    (2) FCC Catalyst

    Zeolite Y has been the primary active component of fluid catalytic cracking (FCC) catalysts since its first commercial introduction about 50 years ago.12,13,14 This is mainly because of the unique combination of a few important properties of zeolite Y: (1) high surface area and relatively large pores (~7.4 Å in diameter); (2) strong Brønsted acidity; (3) excellent thermal and hydrothermal stability; and (4) low cost. When other zeolites are used as active components in FCC catalysts, their catalytic performance (activity and product selectivity) cannot compare with that of zeolite Y due to its specialized properties.



    Conclusion

    Zeolite Y is widely used in in catalytic cracking due to its specialized properties such as structure stability, hydrophobicity and catalytic activity. The ultrastable Y zeolite in fluid cracking catalysts is commonly stabilized by ion-exchange with rare earth (RE) cations and the RE-exchange provides hydrothermal stability to the zeolite. Thus, REUSY, is a prime example of how rare earth exchange can provide hydrothermal stability by improving surface area retention and inhibiting dealumination, resulting in greater preservation of acid sites.
