BioMatec™ Sorter System
BioMatec™ Sorter System
Product Detail
Product Overview
1) Main Unit
BioMatec™ Sorter System
Product Features
The BioMatec™ Sorter System is an advanced automated system that utilizes magnetic separation technology for efficient and precise cell sorting. With its disposable tubing design, the platform ensures easy installation, seamless parameter configuration, and sterile cell enrichment or depletion. The process is not only safe and efficient but also guarantees high product purity, recovery rates, cell viability, and reproducibility. Beyond cell sorting, the platform offers flexible configuration and optimization of parameters and processes to suit specific workflows. It also features hierarchical permission management, electronic record-keeping, and comprehensive audit trails, all accessible through a pre-configured remote operation interface.
Key Features
- Versatile Cell Sorting: Meets sorting requirements for various cells, such as T cells, NK cells, and hematopoietic stem cells.
- High Performance: Achieves high cell viability and purity.
- User-Friendly Interface: Equipped with screen monitoring and data tracking capabilities.
- Customizable Control: Program requirements can be tailored according to customer needs, offering high flexibility.
- GMP-Compliant Enclosure: Meets GMP production standards.
Product Specifications
|
Product Name |
BioMatec™ Sorter System |
|
SKU |
EBMSS001 |
|
Dimensions |
460 × 490 × 1300mm (d × w × h) |
|
Weight |
45kg |
|
Power Supply |
220VAC, 50/60Hz |
|
Rated Power |
400W |
|
USB Ports |
3 |
|
Ethernet Port |
1 x 100Mbps Ethernet port |
|
Display |
12.1-inch touchscreen |
|
Operating System |
Linux system |
|
Software Functions |
Built-in programs, customizable |
|
Pipeline Consumables |
Disposable pipeline consumables |
|
Compatible Reagents |
Compatible with various sorting reagents |
|
Magnetic Cell Sorting |
Enrichment sorting, Depletion sorting |
|
Initial Sample |
Whole blood, apheresis blood, PBMC |
|
Ambient Temperature |
10～35℃ |
|
Relative Humidity |
20～80% |
|
Storage Temperature |
0～40℃ |
Reference Data

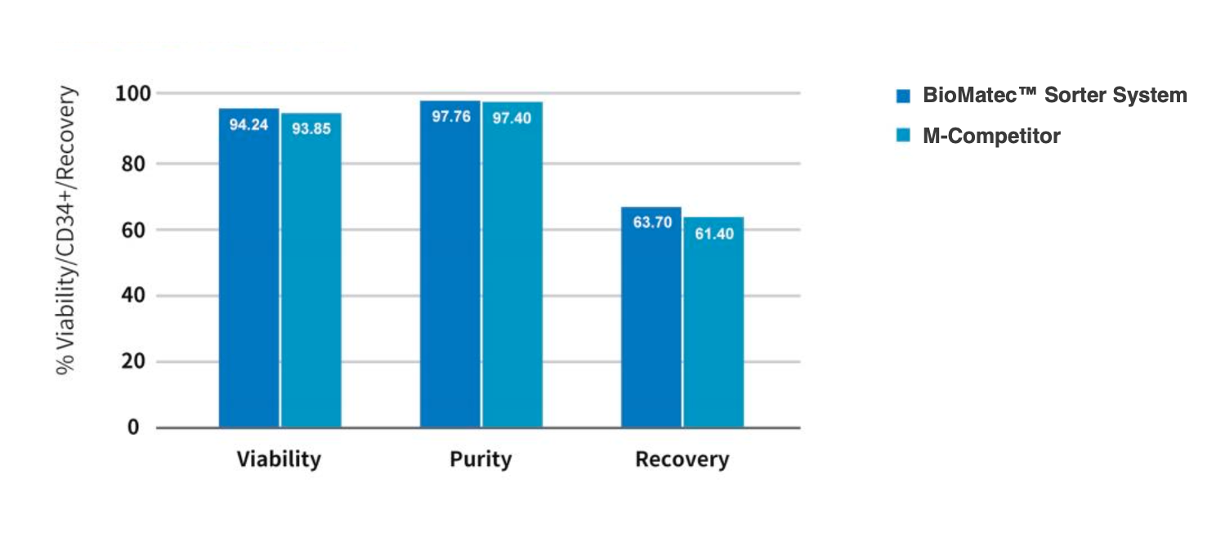

Sorter System CD34+of Cell enrichment and sorting comparison data

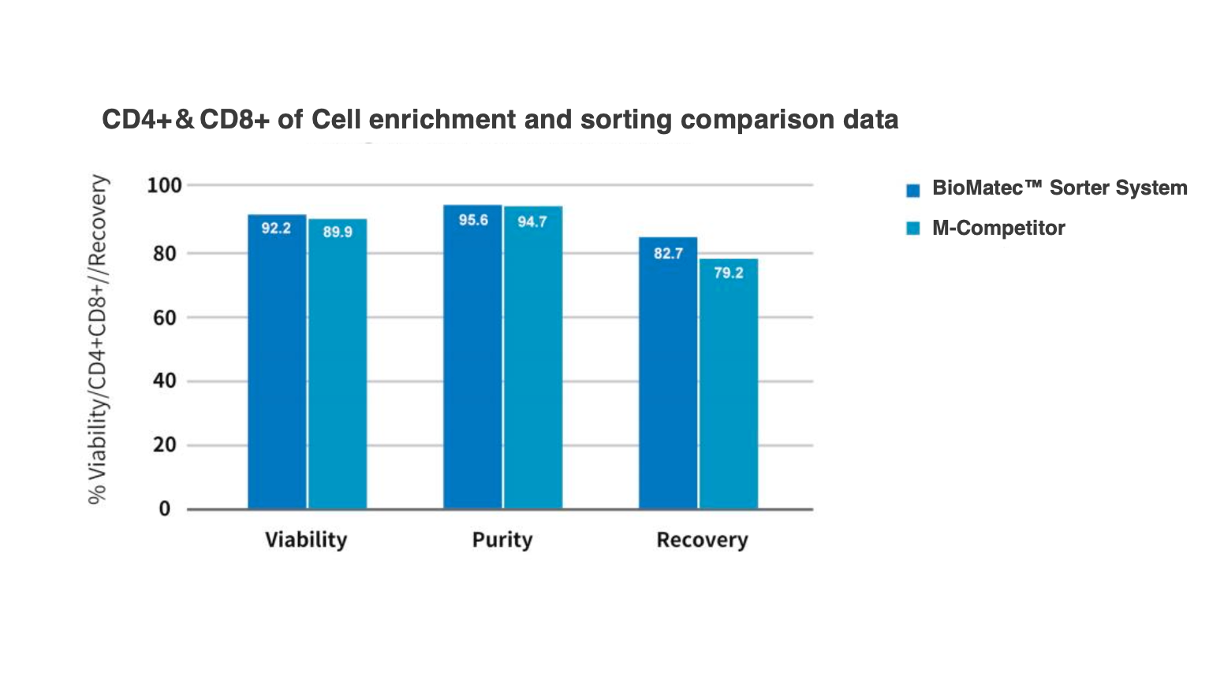

Sorter System CD4+＆CD8+ of Cell enrichment and sorting comparison data
Sorter System CD3+ of Cell depletion sorting data
